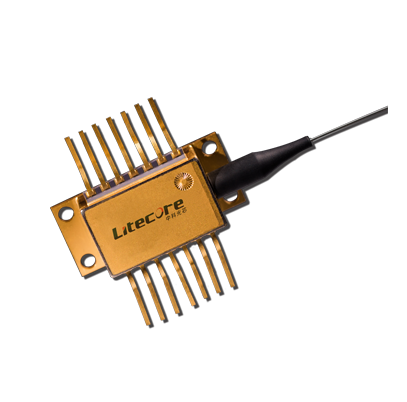

DFB Laser

• Litecore high power laser component features DC coupling and is equipped with a TEC (thermoelectric cooler), thermistor, and monitoring photodiode. The device is mounted in a 14-pin, OC-48 pinout-compatible butterfly package with the optical isolator mounted on the TEC. This component incorporates a high-efficiency coupling scheme to deliver more than 30 mW, 40 mW, 50 mW, or 60 mW of CW optical power.

• Application : Continuous wave light sources for CATV, free-space optics, WDM networks

¥ 0.00

Buy now

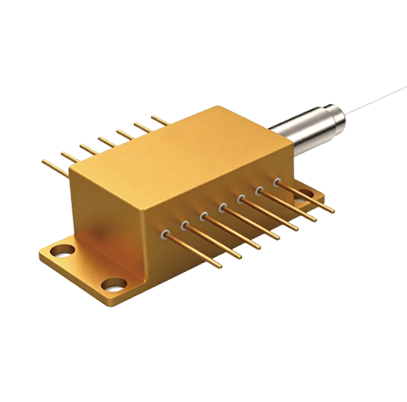

Butterfly Laser

continuous power supply CW,-20 ℃-65 ℃ operating temperature range. Wavelength 1550nm /-10nm, relative intensity noise RIN<-140dB/Hz; Mainly used for light sources in CATV and DWDM fields. The module is in the form of a butterfly 14pin package with isolators, TEC, thermistors, etc. The module contains a high coupling efficiency design, and the output power can reach 10mW, 20mW, 40mW, 50mW,70mW and 100mW continuous optical power output.

¥ 0.00

Buy now
